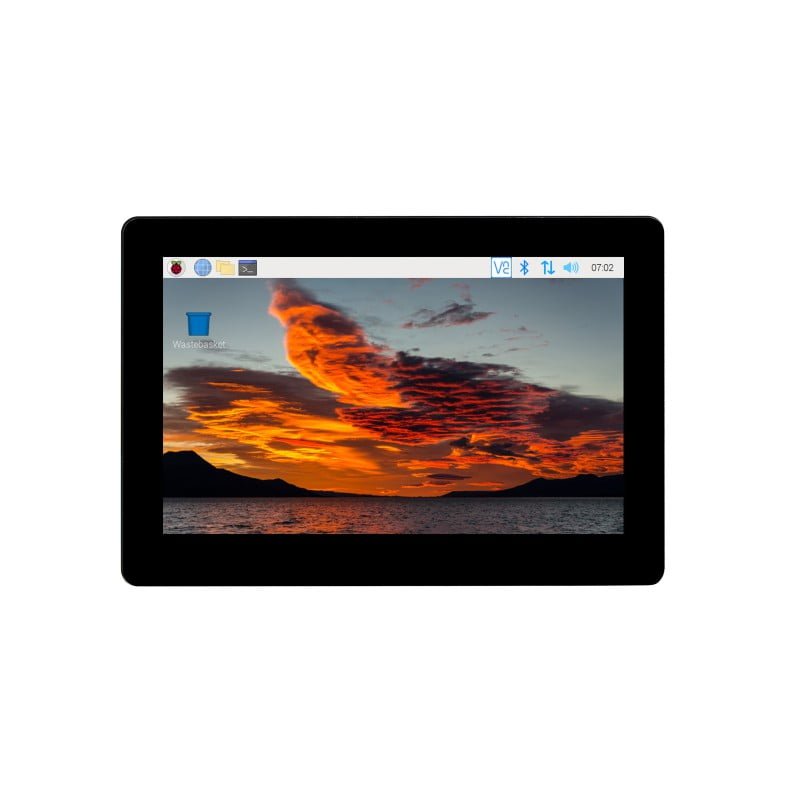

DescriptionSpecificationsCM4 SOCKETsuitable for all variants of Compute Module 4NETWORKINGGigabit Ethernet RJ45 connectorM.2 M KEY, supports NVME SSDPOEPoE header (additional PoE HAT is required to enable PoE feature)USBUSB 2.0 × 4DISPLAY5″ screen, 800 × 480 pixels, 5-point capacitive touchCAMERAMIPI CSI-2 port × 2 (15pin 1.0mm FPC connector)VIDEOHDMI, supports 4K 30fps outputRTCReal-time clock with battery socket and ability to wake Compute Module 4STORAGEMicroSD card socket for Compute Module 4 Lite (without eMMC) variantsFAN HEADERallows speed adjustment and measurement, 5V / 12VPOWER INPUT5VDIMENSIONS127.7 × 87.45mm5″ · HD Display5″ 800 × 480 Pixels Display, Clear DetailsIPS · Natural ColorWide Viewing Angle, Fast Response, Precise And Natural Color No Ripple On Touch, Better Touch Experience4K Output To External DisplaySupports 4K (3840*2160) 30fps Output Via HDMI Port Fully Releasing The Vision Potentiality5-Point Capacitive 「Gentle」 TouchUp To 5-Point* Capacitive Touch Screen Just Gently Touch It Without Any Force, That Is “Capacitive”* the actual touch points depend on the software systemSlide To Adjust The BrightnessThe Backlight Brightness Is Adjustable By Software For Different Scenarios More Power Saving For The Night Or Battery-Powered ProjectsLove It, Cool ItOnboard Fan Header With Speed Adjustment And Measurement Support Compatible With 5V/12V Cooling Fans* for reference only, the CM4, cooling fan, and M.2 SSD are NOT included.More DetailsM.2 slot supports M.2 M-key SSD4x USB 2.0 adequate connectors, for more USB devices as you likeGigabit Ethernet RJ45 Gigabit Ethernet connection, say goodbye to the snailDual MIPI CSI-2 ports allows connecting single camera or binocular cameras with different pixelsInterface IntroductionApplication ExampleSuitable For Raspberry Pi Applications Or Industrial Scenarios Requiring Multi-Function PeripheralsOutline DimensionsWIKI: www.waveshare.com/wiki/CM4-DISP-BASE-5A
