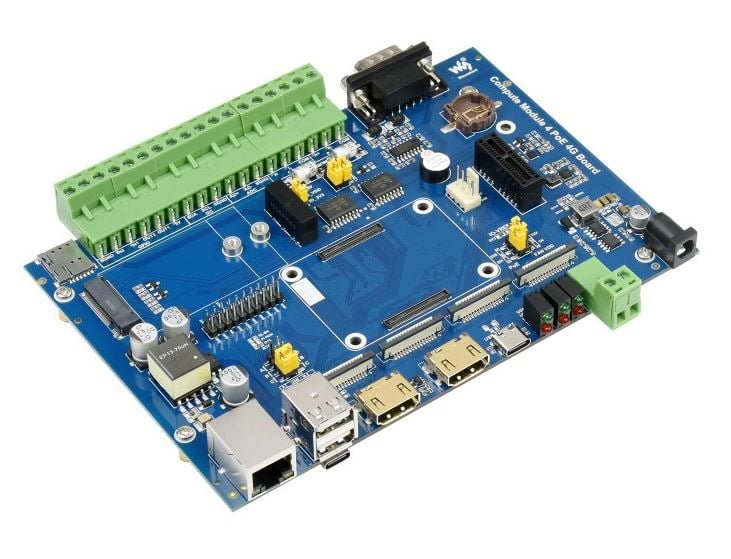

Waveshare Compute Module 4 Industrial IoT Base Board

DescriptionCM4 Industrial IoT Base BoardGlobal 5G/4G/3G/2G Cellular Network Support*, PoE Ethernet, Industrial ControlIdeal for sorts of industrial IoT applications* a separate communication module is required to support the global 5G/4G/3G/2G cellular network, this 5G module is recommended.Features At A GlanceThe Compute Module 4 PoE 4G Board is an industrial grade IoT base board designed for Raspberry Pi Compute Module 4 (not included). It features communication functions including global 5G/4G/3G/2G cellular network, and PoE Ethernet. There are also various industrial isolated interfaces such as CAN, RS485, RS232, ADC, and GPIO, which make it an ideal choice for sorts of industrial IoT applications. Compared with the CM3 version, this one will provide more powerful processing performance.Compatible with Raspberry Pi Compute module 4 all variantsM.2 slot for connecting separate communication module, global 5G/4G/3G/2G cellular network support10/100M/1000M auto-negotiation Ethernet port, with PoE enabledUSB HUB, allows connecting more USB devicesUSB TO UART, for serial debuggingProvides various industrial isolated interfaces: CAN, RS485, RS232, ADC, GPIO, RTCMultiple video-related ports like HDMI, DSI, CSILED indicators for monitoring operating statusSpecificationsCM4 SOCKETsuitable for all variants of Compute Module 4NETWORKINGGigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)M.2 B KEY, supports 5G / 4G moduleSIM card slot, supports standard SIM card for 5G/4G/3G/2G communicationCONNECTORIsolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIOUSBDual USB 2.0 Type ADISPLAYDual MIPI DSI display ports (15pin 1.0mm FPC connector)CAMERADual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)VIDEODual HDMI ports, supports 4K 30fps outputRTCReal-time clock with battery socket and ability to wake Compute Module 4STORAGEMicroSD card socket for Compute Module 4 Lite (without eMMC) variantsFAN HEADERallows speed adjustment and measurement, 5V / 12V inputPOWER INPUT7V~36V wide rangeDIMENSIONS160 × 114mmConnecting With Compute Module 4Standard CM4 Socket, Suitable For All Variants Of Compute Module 4for reference ONLY, Compute Module 4 and 4G module are NOT included.More Rich InterfacesVarious Interfaces Including: M.2/CSI/DSI/HDMI/USB/ETH/PCIe/RS232/RS485Application ExamplesSuitable For Raspberry Pi Applications Where Multiple Peripherals Are Required Or Other Industrial Contextfor reference ONLY, Compute Module 4, displays and cameras are NOT included.What’s On BoardCompute Module 4 socket for connecting Raspberry Pi Compute Module 4Power input 7-36V wide range power supplyCM4 status indicator red: Raspberry Pi power indicator green: Raspberry Pi operating status indicatorM.2 status indicator red: enabled indicator green: operating status indicatorUser LED handy for I/O output testing, or program running status monitoringUSB TO UART for serial debuggingHDMI dual HDMI ports, supports dual 4K 30fps outputUSB 2.0 dual USB 2.0 ports, for connecting USB devicesRJ45 Gigabit Ethernet 10/100/1000M auto-negotiation Gigabit Ethernet port, with PoE Power Over Ethernet featuresM.2 slot for connecting 5G/4G communication moduleSIM card slot supports standard SIM card for 4G/3G/2G communicationRTC real time clock battery holder supports CR1220 button cellPCIe Gen 2 × 1 socketFan header for connecting cooling fan, allows speed adjustment and measurementBuzzerDISP dual MIPI DSI display portsCAM dual MIPI CSI camera portsIsolated GPIO allows controlling / detecting devices via GPIOIsolated I2C allows controlling / reading devices via I2CIsolated ADC ADC differential inputIsolated CAN interfaceIsolated RS485 interfaceIsolated RS232 interfaceMicro SD card slot (bottom side) insert a Micro SD card with pre-burnt system, to start up Compute Module 4 LiteUSB-C programming port (bottom side) allows burning system image into Compute Module 4 eMMC variantsOutline DimensionsResources & ServicesWIKI: Compute_Module_4_PoE_4G_Board* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
