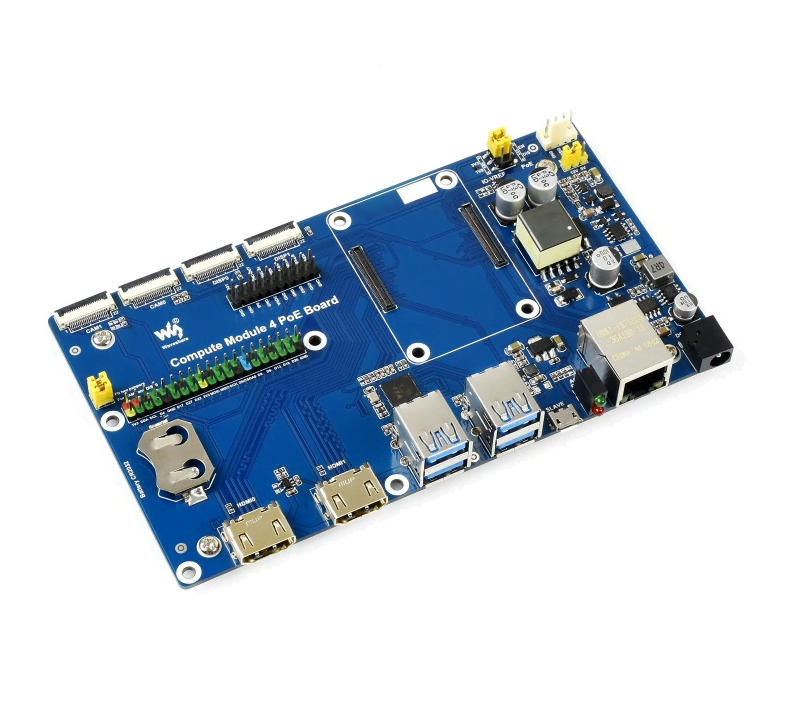

Waveshare Raspberry Pi Compute Module 4 IO Board with PoE

DescriptionWhat’s The Differences WAVESHARE CM4 POE IO BOARD RASPBERRY PI CM4 IO BOARDPOEintegrates 802.3af-compliant PoE circuit (5V/2.5A)PoE header onlyUSB4x USB 3.2 Gen1 ports Micro USB port2x USB 2.0 ports Micro USB portETHERNETGigabit Ethernet RJ45 with PoE supportGigabit Ethernet RJ45 with PoE supportHEADERColor-coded 40PIN GPIO header40PIN GPIO header standard PCIe Gen 2 × 1 socketFAN5V / 12V standard fan connector12V standard fan connectorPOWER INPUT7V~36V12VCM4 SOCKETsuitable for all variants of Compute Module 4RTCReal-time clock with battery socket and ability to wake Compute Module 4VIDEO2x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)CAMERA2x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)SD CARD SLOTMicroSD card socket for Compute Module 4 Lite (without eMMC) variantsDIMENSIONS160 × 90mmConnecting With Compute Module 4Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header Suitable For All Variants Of Compute Module 4Rich Peripheral ConnectorsOnboard Connectors Including CSI/DSI/RTC/HDMI/USB/ETH/TF CardWhat’s On BoardCM4 socket suitable for all variants of Compute Module 4Power input 7~36V wide range power supplyGigabit Ethernet connector Gigabit Ethernet RJ45 with PoE supportUSB SLAVE port allows burning system image into Compute Module 4 eMMC variantsUSB3.2 ports 4x USB 3.2 Gen1 ports, for connecting sorts of USB devicesHDMI ports 2x HDMI ports, supports dual 4K 30fps outputRTC RTC battery holder, allows RTC-related functions like wakeup, shutdown, reboot, and moreCAM 2x MIPI CSI camera portsDISP 2x MIPI DSI display portFAN for connecting cooling fan, allows speed adjustment and measurementFAN power selection 5V or 12V voltage to drive the fanIO-VREF/PoE selection CM4 IO logic level: 3.3V or 1.8V PoE: enable (EN) or disable (DIS)40PIN GPIO headerCAM0 and DISP0 I2C bus fit the jumpers when using CAM0 or DISP0Misc configurationsDual LED indicators red: Raspberry Pi power indicator green: Raspberry Pi operating statusindicatorTF card slot (bottom side) insert a Micro SD card with pre-burnt system, to start up Compute Module 4 LiteOutline DimensionsApplication ExampleSuitable For PoE Powered Raspberry Pi Projects, Or Other Industrial Contextfor reference only, CM4, display, and cameras are NOT included.WIKI: Compute_Module_4_POE_Board
