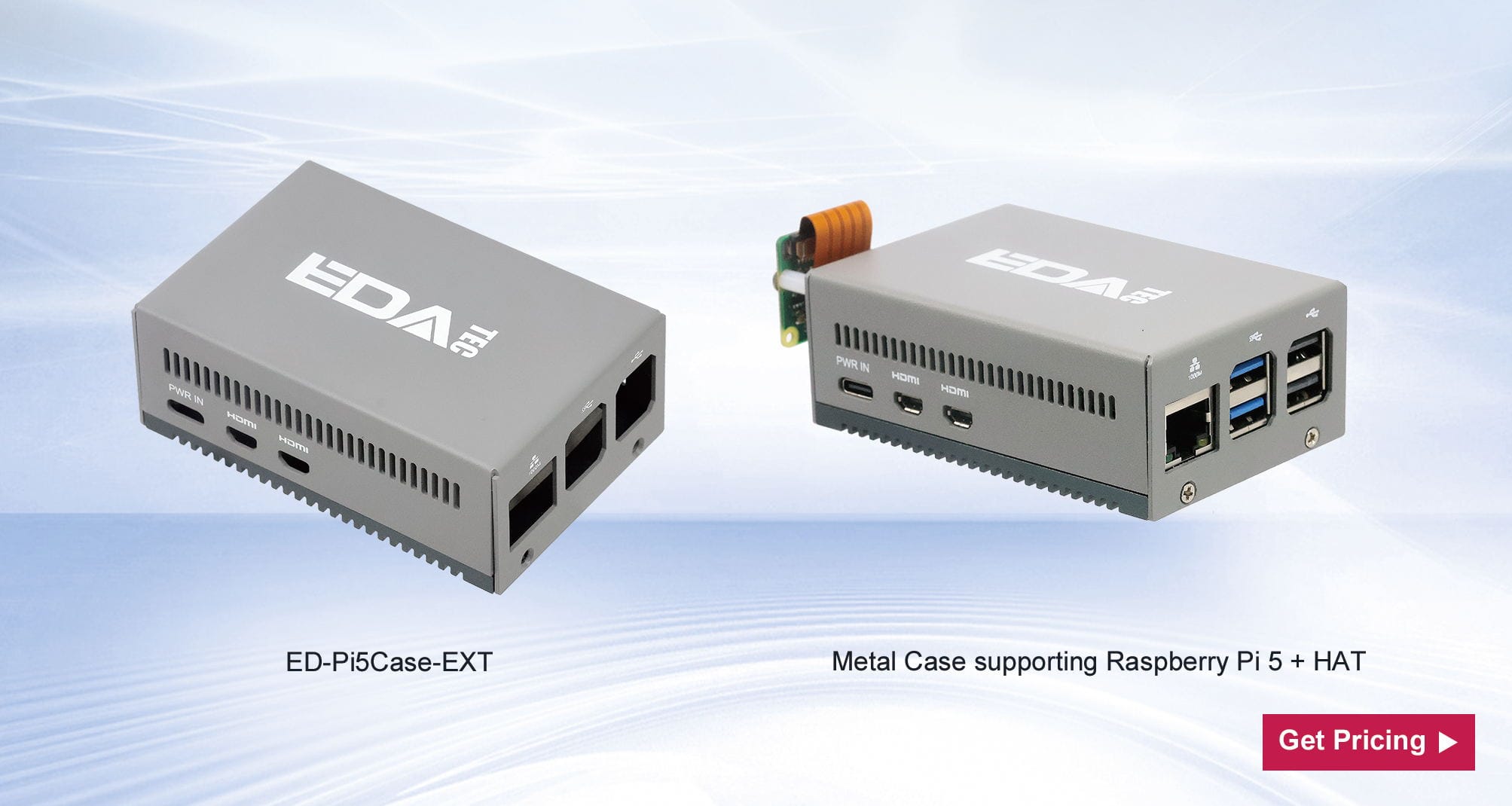

Edatec Pi 5 Metal Case EXT

DescriptionOverviewMetal Case supporting Raspberry Pi 5 HATSheet metal powder spraying aluminium profile technology, simple designBoth top and bottom case provide passive cooling for Raspberry Pi 5 though thermal pads & metal body, excellent cooling performanceGood protection for Raspberry Pi 5, Raspberry Pi Active Cooler and Raspberry Pi M.2 HAT Support installation of Raspberry Pi 5 Raspberry Pi M.2 HAT Support installation of Raspberry Pi Active CoolerHDMI, Ethernet port, USB, SD card, ON/OFF button and PWR/ACT indicator are all accessibleReserved camera cable slots and mounting holes for installing the Raspberry Pi Camera on the caseAll-metal casing with an attractive appearance for commercial and industrial scenariosSpecificationCooling PerformanceTest Device ConfigurationRaspberry Pi 5 Raspberry Pi AI Kit Raspberry Pi Active CoolerRaspberry Pi 5 Raspberry Pi AI Kit Raspberry Pi Active Cooler ED-Pi5Case-EXTSoftware Configuration● CPU 4 cores running at full load via sysbench● Run stress_test in Hailo ModuleAmbient Temperature25℃Hailo*1 Module stable operating temperature (℃)93.173.3Stable running temperature of CPU (℃)65.165.1*1: Hailo module is an operation module located on Raspberry Pi AI kit.Test Results: Under the environment of 25℃, when the device is running in a stable state, ED-Pi5Case-EXT can reduce the temperature of Raspberry Pi AI Kit by about 20℃, and also reduce the temperature fluctuation range of Raspberry Pi 5 CPU.Mechanical CharacteristicsDimensions91mm x 61mm x 33mmMaterialSheet Metal (Top Cover) Aluminium Profile (Bottom Cover)Document DownloadDatasheet DownloadDimensions Unit：mm
