Official Raspberry Pi 5 Case – Black/Grey

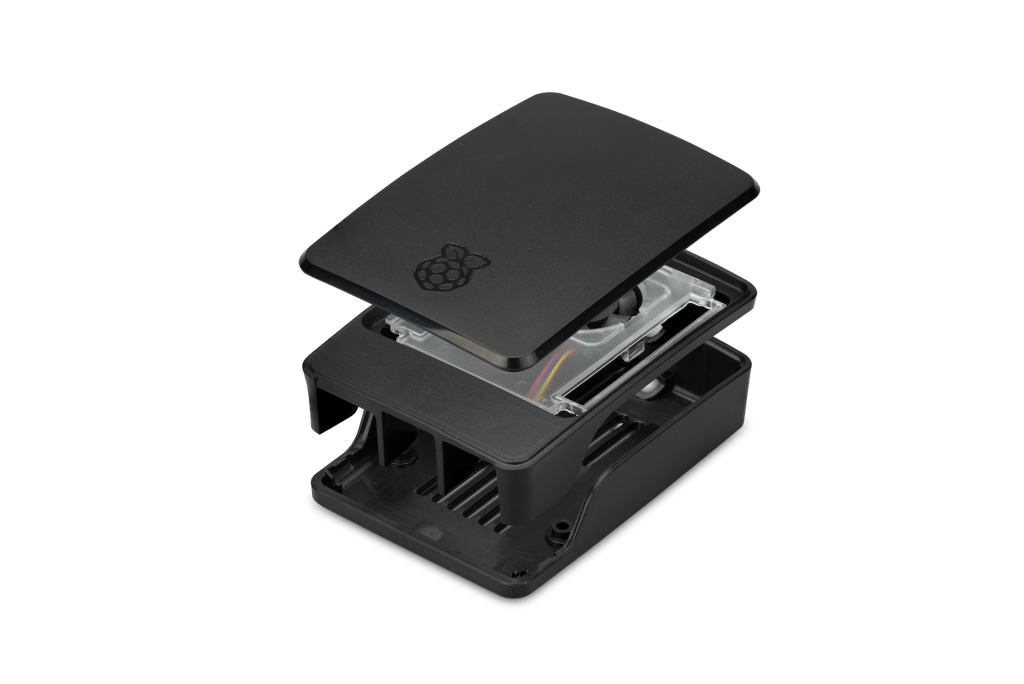

DescriptionThe new Raspberry Pi 5 case is a refinement of the Raspberry Pi 4 case, with improved thermal features to support the higher peak power consumption of Raspberry Pi 5. It integrates a variable-speed fan, powered and controlled from a dedicated connector on the Raspberry Pi 5 PCB.FeaturesIntegrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 512mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processorEasily removable lid exposes fan and breakout slot for cables and GPIOIntegrated mounting features allow for case stackingHATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)Four silicone feet for the case are includedSpecificationInput voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5Fan speed control: Pulse width modulation control with tachometerMaximum airflow: 2.79 CFMMaximum fan speed: 8000 RPM /- 15�se material: ABS (base, frame, lid) and PC (fan assembly)DocumentsCase for Raspberry Pi 5 product brief
