Arduino Nano Original A000005

$ 16.33
Sale!

Arduino Nano Original A000005

Availability:

Categories: ,

Description

Fuss-free Returns & Exchange

In the unlikely event that you're not 100% satisfied, we offer a full refund or exchange on items returned within 14 days of your order.

Free Delivery

Free shipping on all orders over $100

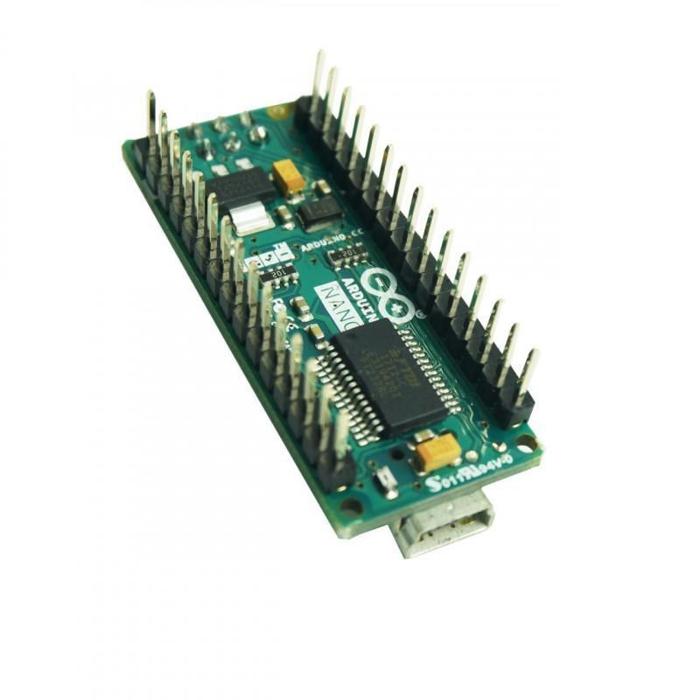

Arduino Nano Original A000005 The Arduino Nano is a compact, open-source development board based on ATmega328P , an 8-bit AVR microcontroller . It has 14 digital I/O pins , 8 analog input pins with 10-bit resolution, 2 reset pins , and 6 power pins , making it perfect for space-constrained projects that require fewer GPIOs and memory. The Arduino Nano board operates at 5V , supports an input voltage of 6V–20V (recommended: 7V–12V ), and runs at a 16 MHz clock frequency . Unlike most Arduino boards, it uses a mini USB port and lacks a DC power jack , so it cannot be powered through an external jack. Fully breadboard-friendly , the Nano is perfect for quick prototyping. It offers flash memory of 32KB (with 2KB used by the bootloader), EEPROM of 512B/1KB , and SRAM of 1KB/2KB , depending on the microcontroller. The Arduino Nano microcontroller delivers Arduino Uno-like performance in a smaller, more project-ready form. What’s so special about Arduino Nano ? Find out! Arduino Nano Pin Diagram Pin Description Digital Pins (0–13) 14 digital I/O pins for connecting external components. Analog Pins (A0–A5) 6 analog input pins to measure voltage from 0 to 5V. LED (Pin 13) Built-in LED connected to digital pin 13. VIN External input voltage pin (6–12V recommended). 3.3V Low voltage output from the on-board regulator. 5V Regulated 5V output to power components. AREF Analog reference voltage input for analog readings. GND 2 ground pins for grounding the circuit. Reset 2 reset pins to reset the controller via software. External Interrupts Pin 2 and 3 can trigger external interrupts in emergencies. USART Rx and Tx pins for serial data communication. I2C SDA and SCL pins for I2C communication using the Wire library. SPI SS, MISO, MOSI, SCK pins used for SPI communication with peripherals. Applications: Automation. Robotics. Control Systems. Embedded Computer. Arduino Nano vs Uno Comparison Table Feature Arduino Nano Arduino UNO R3 Price (Iotcart) ?1,798 ?1,860 VIEW Microcontroller ATmega328P ATmega328P Operating Voltage 5V 5V Input Voltage 7-12V 7-12V Digital I/O Pins 14 (6 PWM) 14 (6 PWM) Analog Input Pins 8 6 Clock Speed 16 MHz 16 MHz Flash Memory 32 KB (0.5 KB used by bootloader) 32 KB (0.5 KB used by bootloader) SRAM 2 KB 2 KB EEPROM 1 KB 1 KB USB Interface Mini USB Standard USB Type-B Size Compact (approx. 45mm x 18mm) Larger (approx. 68.6mm x 53.4mm) Best for Compact projects, breadboard-friendly applications Beginners, shields, projects needing standard size Wireless Capability Needs external module (e.g., ESP8266, HC-05) Needs external module (e.g., ESP8266, HC-05) Expandable with Shields Limited due to size constraints Yes, compatible with multiple shields
