Game Boy DMG: USB-C Charging Mod PRO

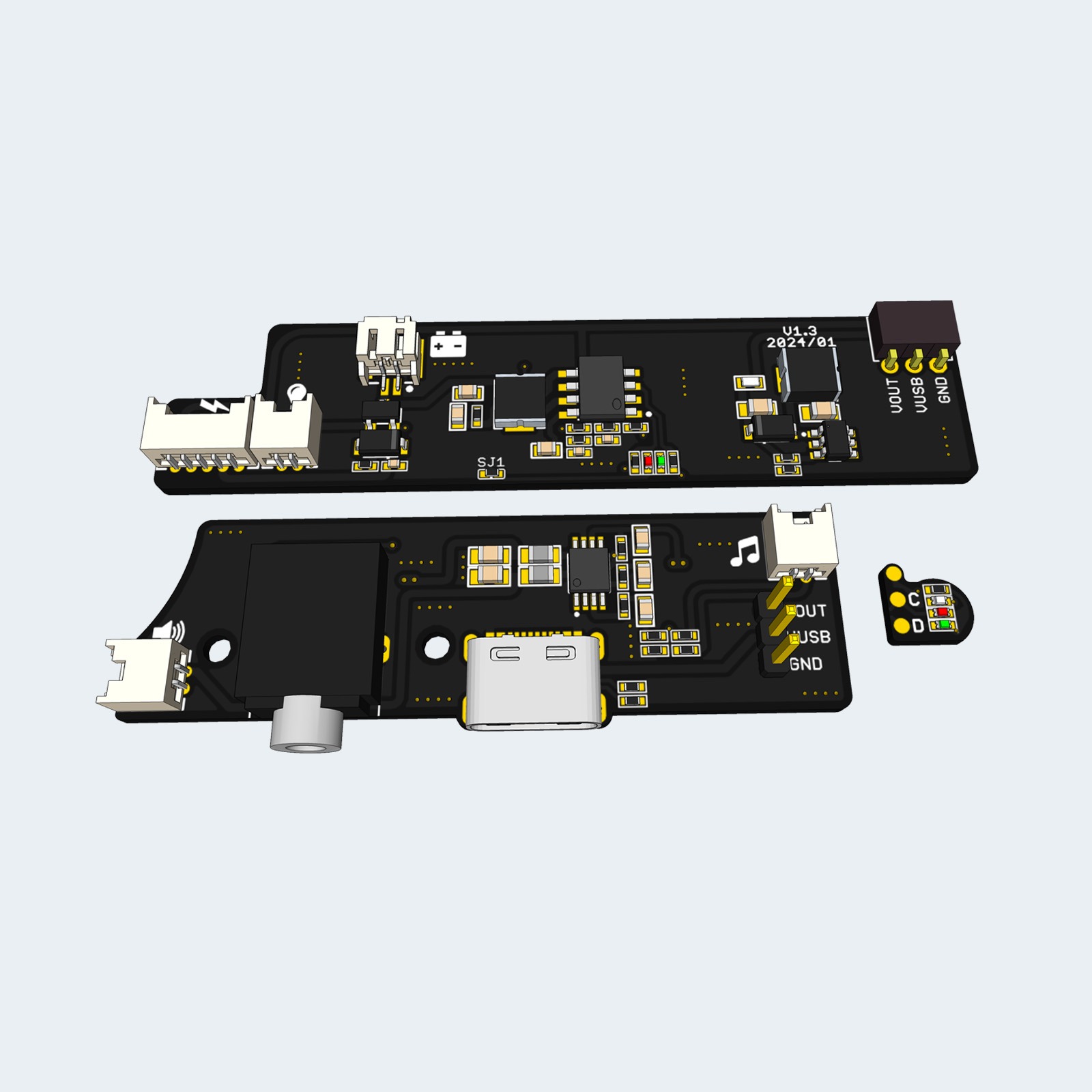

Description The Game Boy DMG USB-C Charging Kit PRO is a new circuit designed specifically for the Nintendo Game Boy. This all-in-one circuit includes not only the charging controller but also a boost converter and an audio amplifier. Modern IPS displays with backlighting require more power than the original display, and flash carts used to load numerous games can quickly drain the battery. To truly enjoy the games, it is recommended to use a rechargeable battery instead of AA batteries. However, simply using a rechargeable battery is not sufficient. The increased power consumption puts a strain on the original electronics, potentially causing noise in the speaker or headphones. The typical solution is to add a charging circuit for the battery and a power converter to replace the old, inefficient one included in the Game Boy. Some individuals also add an audio amplifier to enhance the sound quality of the speaker. All these modifications make the Game Boy function optimally. However, installing them requires numerous cables and may be challenging for individuals without sufficient knowledge. This board adds all these features with a clean and straightforward installation: FEATURES Exact shape for Game Boy DMG. External power through USB-C.(1) Compatibility with all types of USB cables or external batteries. Li-Ion battery charger with overvoltage and undervoltage protection.(1) Power DC converter with a 5V output.(2) Safe charge and play. Audio amplifier for the speaker, amplifying both channels. Integrated LED indicators on the main board for charging (red) and full battery (green). These can be disabled via the SJ1 jumper. External LED indicators board for playing (white), charging (red), and full battery (green). Optional installation. (1) The USB-C port and li-ion battery require trimming of the shell. (2) Provides stable power to your Game Boy, IPS screen, and flash cart. However, it doesn’t supply the -19V rail, which means the original screen cannot be used. INCLUDED 1 frame panel which includes the three boards: Main board USB-C board Light board 1 Battery cable 10cm (with JST SH1.0 2p connector) 1 Audio cable 15cm (with JST 1.25 2p connector) 1 Speaker cable 10cm (with JST 1.25 2p connector) 1 Light board cable 10cm (with JST 1.25 2p connector) 1 Power cable 15cm (with JST 1.25 5p connector) 1 Header with 3 pins 1 Plastic holder for the USB-C board 1 Light diffuser pipe REQUIRED (NOT INCLUDED) Li-ion battery (for example, the 125054) New 8Ω 1W speaker (optional but highly recommended to avoid noise, for example, this one) Tri-wing and Philips screwdrivers Cutting pliers Cutter Tweezers Soldering iron Tin Flux Isopropyl alcohol NOTES The kit is for IPS screens that only require the 5V rail. The original screen or other screens that require the -19V rail will not work. DOCUMENTATION Installation Guide PDF GitHub repository
